Project 2.4.1: Smart lightening system with RGB module.

Description This smart lighting system illustrate the potential of using Arduino, LEDs and ultrasonic sensor in infrastructure and street light planning.
Use case Implementing a lightening system that include different LEDs with adaptable colours to different distance.

Components (Things You will need)

Arduino Uno RGB Module Bread Board Arduino USB Cable Ultrasonic Sensor Jumper wires

Building the circuit

Things Needed:

  • Arduino Uno = 1
  • Arduino USB cable = 1
  • Jumper wires
  • ultrasonic Sensor = 1
  • Breadboard = 1
  • RGB Module = 1

Mounting the component on the breadboard

  • Breadboard = 1
  • RGB Module = 1
  • Ultrasonic sensor = 1

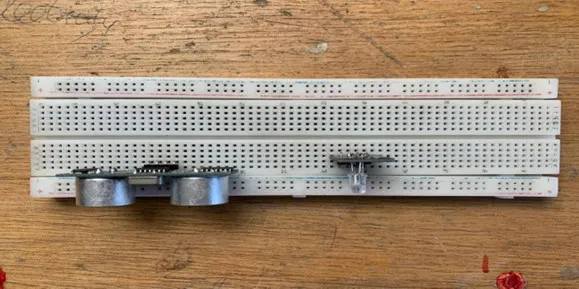

Step 1: • The ultrasonic distance sensor has four pins (Echo, Trig, VCC and GND), On the middle section of the breadboard, locate each horizontal section lettered A to J. Take the ultrasonic distance sensor and insert it into any of the lettered section (Say A) horizontally.

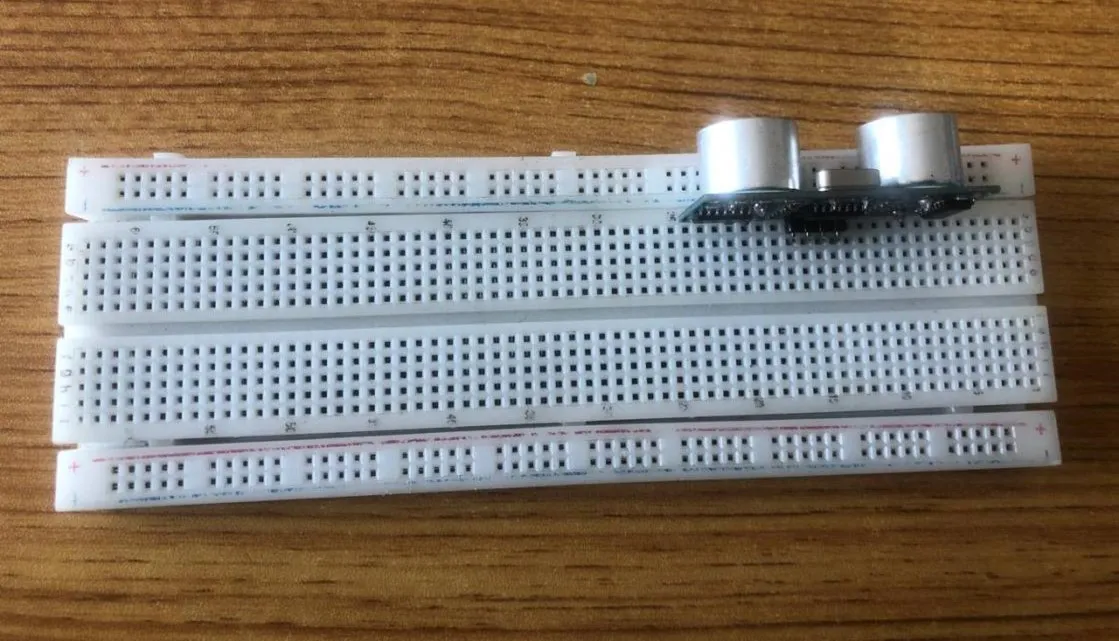

Mount the ultrasonic Sensor on the Breadboard

Step 2: The RGB has four pins (Red, Green, Blue and GND). On the middle section of the breadboard, locate each horizontal section lettered A to J. Take the RGB module and insert it into any of the lettered sections (Say A) horizontally.

Mount the RGB Module on the Breadboard.

NB:Take note of where each of the pins are placed on the bread board.

WIRING THE CIRCUIT

Things Needed:

  • Red male-male-to-male jumper wires = 2
  • White male-to-male jumper wires = 2
  • Green male-to-male jumper wires = 2
  • Yellow male-to-male jumper wires = 2
  • Arduino Uno Board

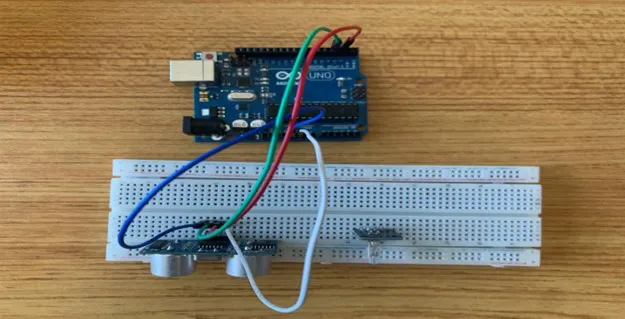

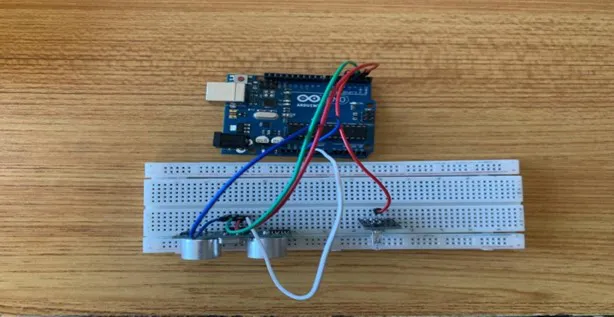

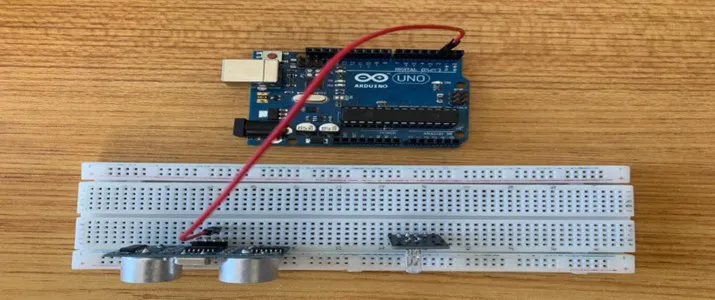

Step 1: Take the Red male-to-male jumper wire and place one side of the wire pin under the Echo pin of the ultrasonic distance sensor and the other side of the wire pin to the digital pin 2 on the Arduino uno board.

connect red jumper wire.

NB:Take note of the digital pin you allocated to the Echo pin.

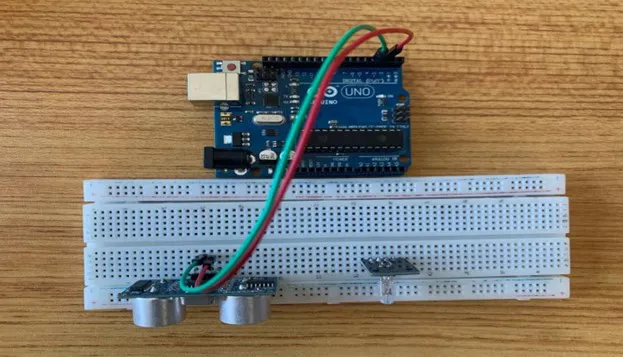

Step 2: Take the Green male-to-male jumper wire and place one side of the wire pin under the Trig pin of the ultrasonic distance sensor and the other side of the wire pin to the digital pin 3 on the Arduino uno board.

connect green jumper wire.

NB:Take note of the digital pin you allocated to the trig pin.

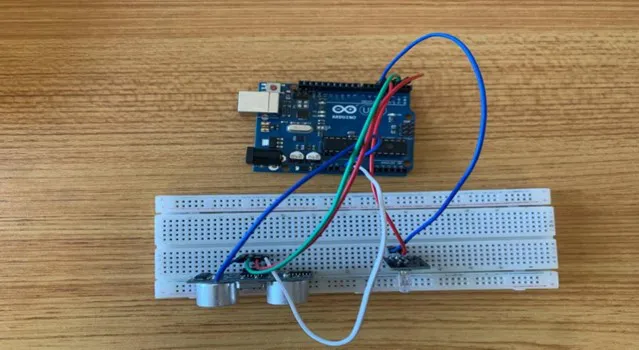

Step 3: Take the Blue male-to-male jumper wire and place one side of the wire pin under the VCC pin of the ultrasonic distance sensor and the other side of the wire pin to the 5V pin on the Arduino uno board.

connect blue jumper wire.

Step 4: Finally, Take the White male-male-to-male jumper wire and place one side of the wire pin under the GND pin of the ultrasonic distance sensor and the other side of the wire pin to the GND port on the Arduino Uno Board.

connect white jumper wire.

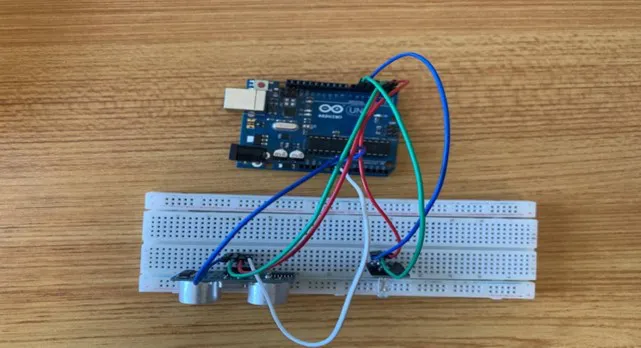

Step 5: Take the Red male-to-male jumper wire and place one side of the wire pin under the Red pin of the RGB module and the other side of the wire pin to the digital pin 4 on the Arduino uno board.

connect red jumper wire to RGB.

NB:Take note of the digital pin you allocated to the Positive pin.

Step 6: Take the Green male-to-male jumper wire and place one side of the wire pin under the Green pin of the RGB module and the other side of the wire pin to the digital pin 5 on the Arduino uno board.

connect green jumper wire to RGB.

Step 7: Take the Blue male-to-male jumper wire and place one side of the wire pin under the Blue pin of the RGB module and the other side of the wire pin to the digital pin 6 on the Arduino uno board.

connect blue jumper wire to RGB.

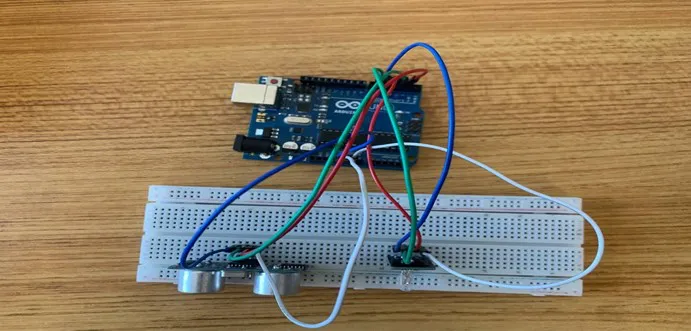

Step 8: Finally, Take the White male-male-to-male jumper wire and place one side of the wire pin under the GND pin of the module and the other side of the wire pin to the GND port on the Arduino Uno Board.

connect white jumper wire to RGB.

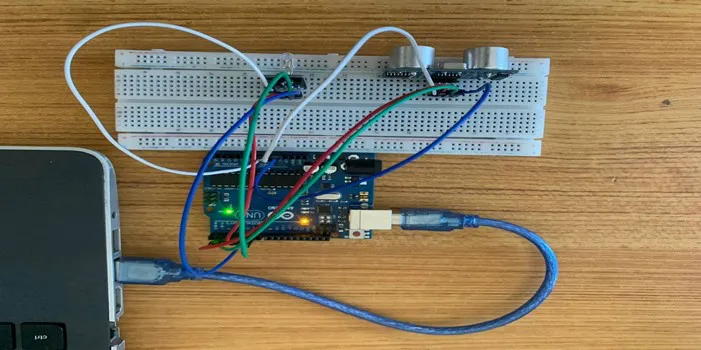

Step 9: Connect the USB port of the Arduino cable to the USB port of your laptop and the other side to the Arduino Uno Board.

connect USB cable to laptop.

PROGRAMMING

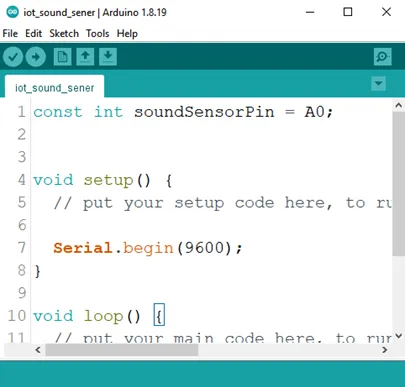

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

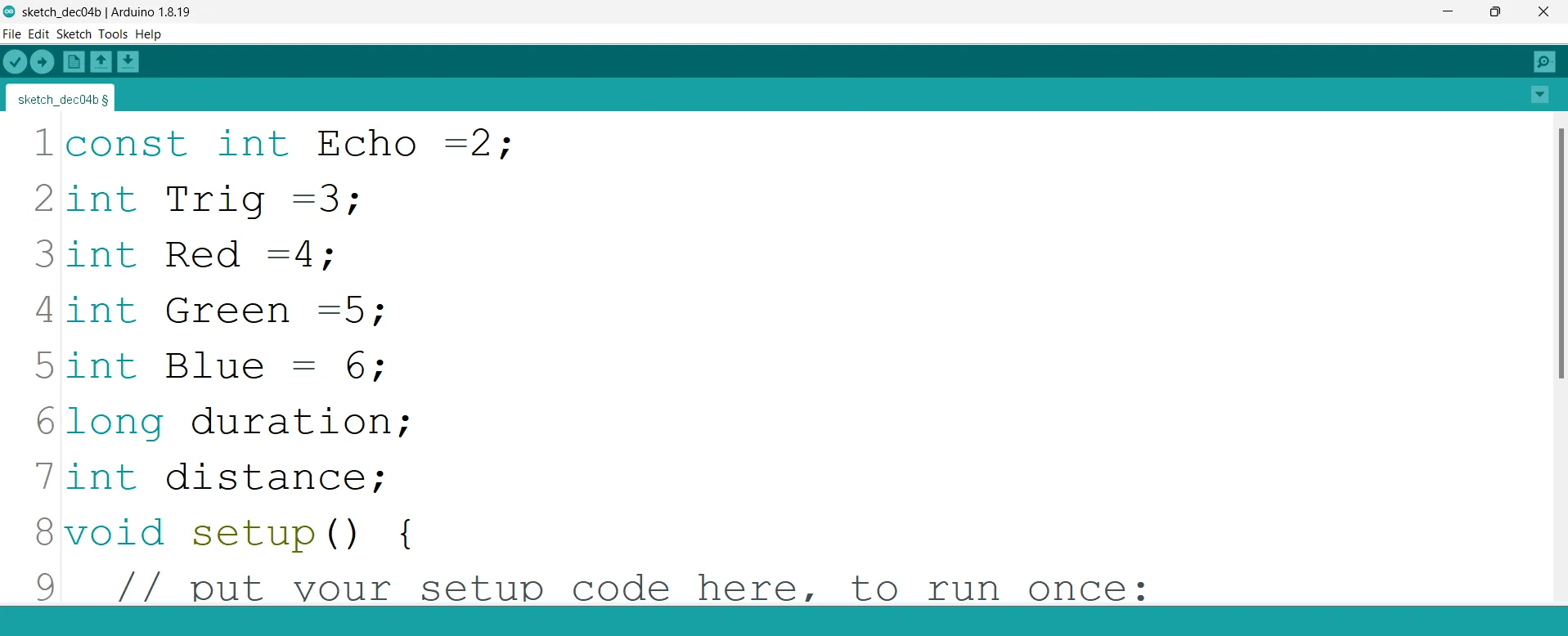

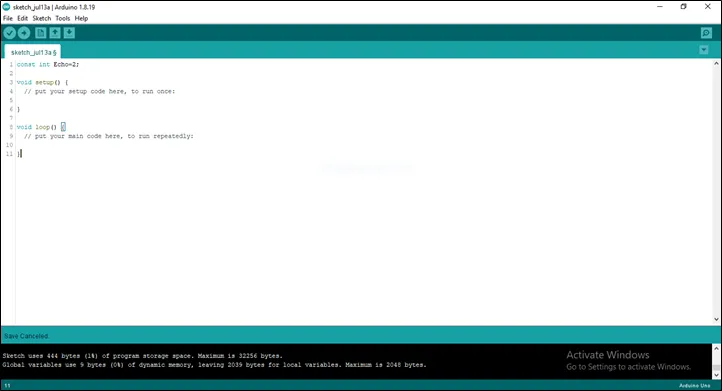

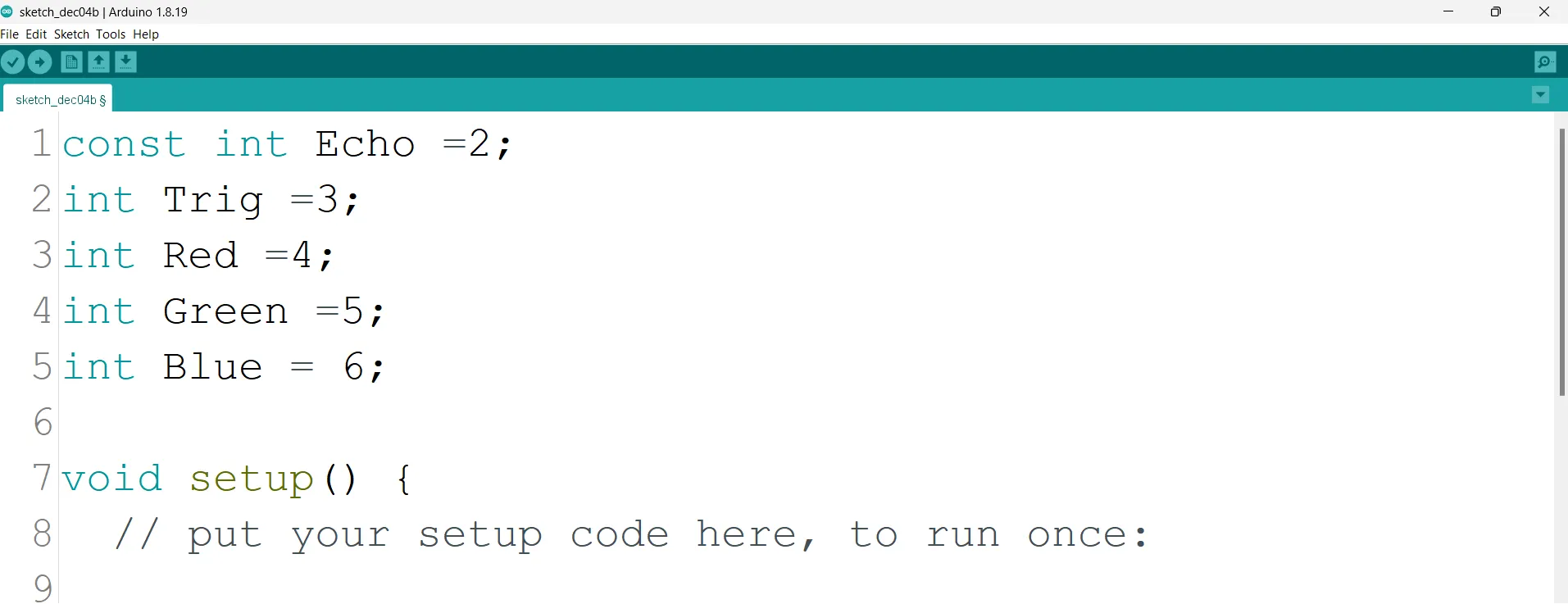

Step 2: Type const int Echo = 2; as shown below in the picture below: on line one before void Setup() function.

create Echo variable.

Step 3: Type int Trig = 3; as shown below in the picture below: on line one before void Setup() function.

create Trig variable.

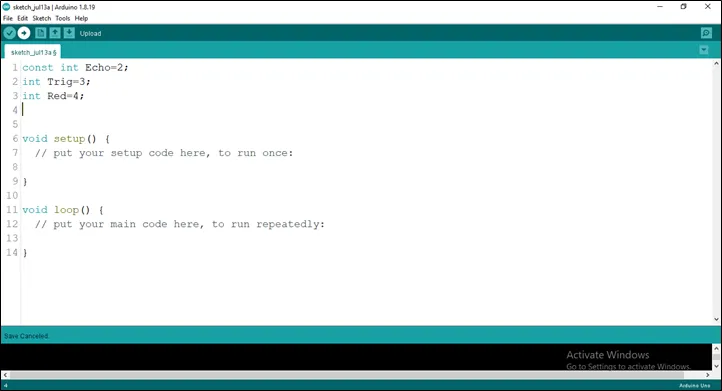

Step 4: Type int Red = 4; as shown below in the picture below: on line one before void Setup() function.

create Red Light variable.

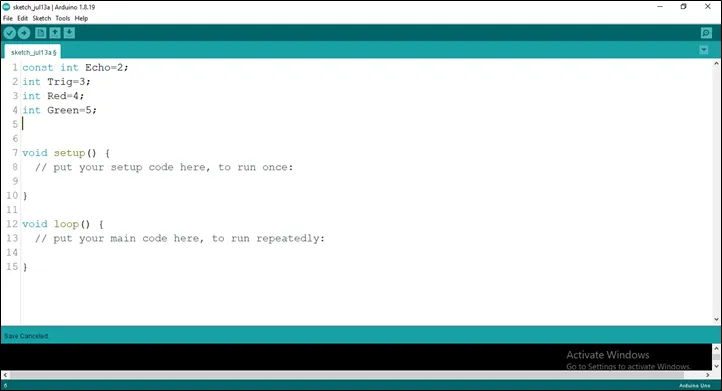

Step 5: Type int Green = 5; as shown below in the picture below: on line one before void Setup() function.

create Green Light variable.

Step 6: Type int Blue = 6; as shown below in the picture below: on line one before void Setup() function.

create Blue Light variable.

Step 7: Type long duration; and Type long duration; as shown below in the picture below: on line one before void Setup() function.

declare duration and distance variable.

Step 8: Type const int dis_threshold = 15;

as shown below in the picture below: on line one before void Setup() function.

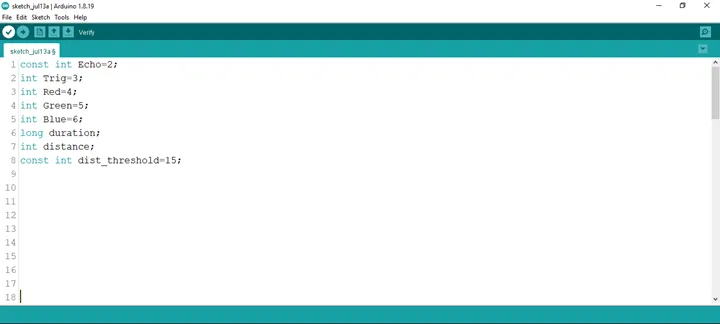

create a threshold.

NB: Make sure you avoid errors when typing. Do not omit any character or symbol especially the bracket {} and semicolons; and place them as you see in the image. The code that comes after the two ash backslashes “//” are called comments. They are not part of the code that will be run, they only explain the lines of code. You can avoid typing them.

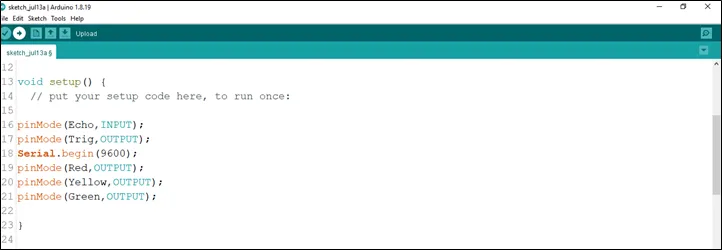

Step 9: In the {} after the pinMode (Echo, INTPUT); pinMode (Trig, OUTPUT); Serial.begin (9600); pinMode (Red, OUTPUT); pinMode (Yellow, OUTPUT); pinMode (Green, OUTPUT);

as shown below in the picture below:

initialize the variables.

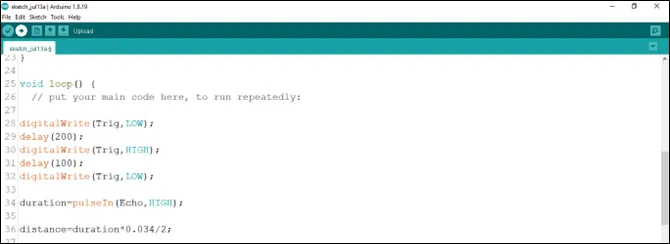

Step 10: In the {} after the digitalWrite (Trig, LOW); delay (200); digitalWrite (Trig, HIGH); delay (100); digitalWrite (Trig, LOW); duration = pulseIn (Echo, HIGH); distance = duration * 0.034/2; as shown below in the picture below:

Type this void loop.

Step 11: Type This Function as shown in the image below.

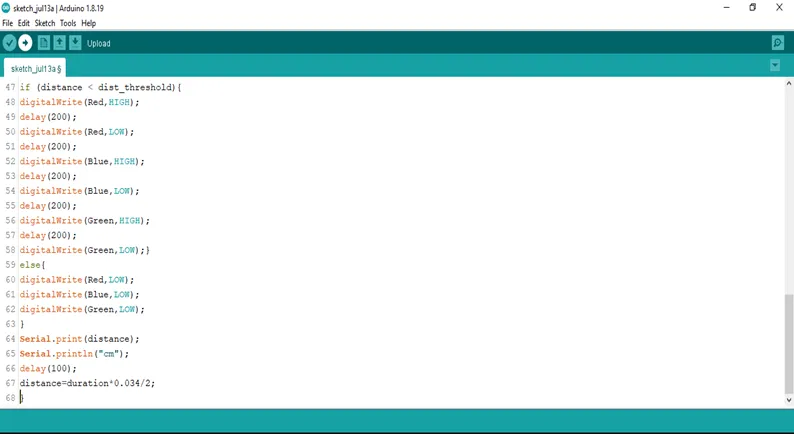

if (distance < dis_threshold) { digitalWrite (Red, HIGH); delay(200) digitalWrite (Red, LOW); delay(200) digitalWrite (Blue, HIGH); delay(200) digitalWrite (Blue, LOW); delay(200) digitalWrite (Green, HIGH); delay(200) digitalWrite (Green, LOW); else{ digitalWrite (Red, LOW); digitalWrite (Blue, LOW); digitalWrite (Green, LOW); } Serial.print (distance); Serial.println (“cm”); delay (100); distance = duration * 0.034/2;} as shown in the picture below.

create a new function.

Step 12: Save your code. See the Getting Started section

Step 13: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 14: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

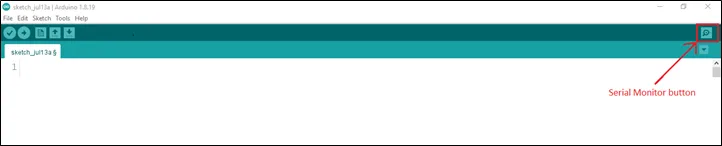

Step 15: Click on the serial monitor icon to view the amount of sound being recorded as shown in the picture below:

open the Serial Monitor.

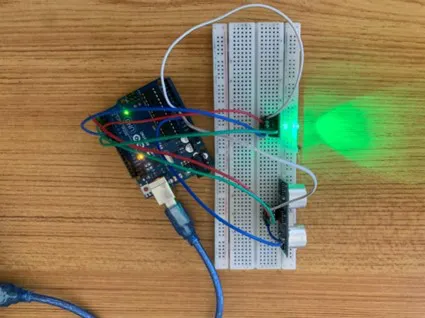

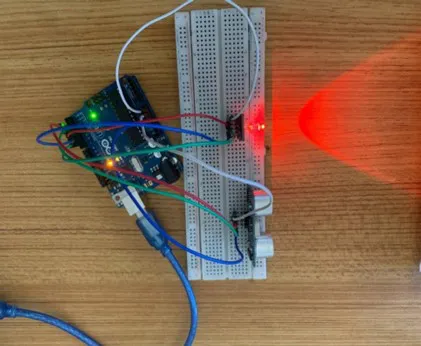

OBSERVATION

Serial monitor starts displaying distance values

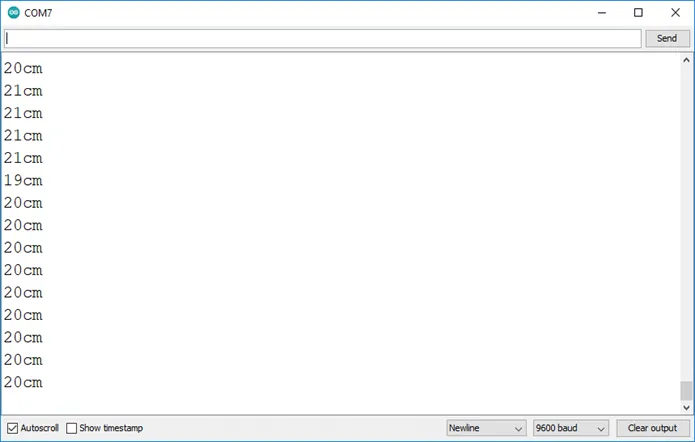

The serial monitor recording

Sensor records less than 20cm

The serial monitor recording 20cm

CONCLUSION

If you encounter any problems when trying to upload your code to the board, run through your code again to check for any errors or missing lines of code. If you did not encounter any problems and the program ran as expected, Congratulations on a job well done.
